ASTM A516 Grade 70 Plate Supplier in Hyderabad
Chiranjiv Steel Centre supplies ASTM A516 Grade 70 plates to pressure vessel, boiler and process equipment fabricators in Hyderabad, where Sanathnagar was laid out as one of the state’s first industrial estates after the 1956 States Reorganisation, and across the wider Telangana industrial belt. Approximately 2000 tonnes of plate stock are placed at our Taloja and Kalamboli yards in Navi Mumbai, so a confirmed Hyderabad order draws on material that is already rolled, tested and certified rather than queued behind a mill programme. Kalamboli is approximately 671 km from Hyderabad by road. Loads run the Mumbai-Pune Expressway as far as Pune, then pick up NH-65 through Solapur and Zaheerabad. Ready-stock orders leave the yard within 2 to 3 working days, and road transit is confirmed against the transporter’s schedule at the time of booking. Plate at 40 mm and under is supplied as-rolled, which covers our full 3 mm to 20 mm ready stock. Above 40 mm the standard requires the plate to be normalised, and that material comes on order. Where notch toughness testing is ordered at 40 mm and under, the standard also calls for normalised plate unless the purchaser specifies otherwise. The delivery condition is printed on the certificate in every case. Stock runs 3 mm to 20 mm thick in widths of 1250 mm and 1500 mm, at lengths of 5000 mm and 6300 mm. Heavier sections, up to 100 mm, are arranged in order. Every plate we hold is dual certified to ASTM A516 Gr 70 and ASME SA 516 Gr 70, and travels with a Mill Test Certificate to EN 10204 3.1.
On this Page
Stock Position Behind a Hyderabad Enquiry
| Stock Detail | What We Offer |
|---|---|
| Ready stock quantity | Approximately 2000 tonnes |
| Thickness in stock | 3 mm to 20 mm |
| Thickness on order | Up to 100 mm |
| Plate width | 1250 mm and 1500 mm |
| Plate length | 5000 mm and 6300 mm |
| Supply condition | As-rolled at 40 mm and under, covering the full 3 mm to 20 mm ready stock; normalised above 40 mm as required by the standard, on order |
| Certification | Dual certified ASTM A516 Gr 70 / ASME SA 516 Gr 70 |
| Warehouse location | Taloja and Kalamboli, Navi Mumbai |
A size outside this list can be arranged as per order.
Why Order Plate A516 Gr 70 From Navi Mumbai Stock Instead of Locally?
| What holds up the job | What stock supply does |
|---|---|
| Mill lead time runs into weeks. The vessel sits waiting on a rolling programme. | Approximately 2000 tonnes is held at Taloja and Kalamboli. Confirmed orders load in 2 to 3 working days. |
| The drawing calls for normalised. As-rolled turns up at the gate. | Condition is settled at order stage and printed on the certificate. |
| A certificate problem surfaces at your gate, approximately 671 km from the yard. | The MTC reaches your QA desk before the vehicle is loaded. |
| A full plate is bought for a small job. Half of it stays on the floor as offcut. | Plates are cut to your sizes before despatch, so freight is paid on the part you will actually use. |
| Freight looks heavy against a part quantity. | Part loads consolidate on this route. Several jobs travel on one vehicle. |
| An out-of-state purchase complicates the tax reconciliation. | Maharashtra to Telangana is inter-state, so IGST applies as one creditable line on one invoice. |
Ready-Stock SA 516 Carbon Steel Plate Sizes
| Size | Size | Size | Size | Size |
|---|---|---|---|---|
|
6 × 2000 × 12000 |
8 × 2500 × 12000 |
10 × 2000 × 12000 |
10 × 2500 × 12000 |
10 × 2500 × 6000 |
|
12 × 2000 × 12000 |
12 × 2500 × 12000 |
14 × 2000 × 12000 |
14 × 2000 × 5400 |
14 × 2500 × 12000 |
|
16 × 2000 × 12000 |
16 × 2500 × 12000 |
18 × 2500 × 12000 |
20 × 2500 × 12000 |
22 × 2000 × 11500 |
|
25 × 2500 × 12000 |
25 × 2500 × 9000 |
32 × 2500 × 6000 |
32 × 2500 × 3000 |
36 × 2500 × 6000 |
|
40 × 2500 × 6000 |
40 × 2500 × 7000 |
75 × 2500 × 4100 |
90 × 2500 × 6800 |
90 × 1500 × 2700 |
Stock turns over continuously, so confirm availability against your size before you plan the cutting schedule.
ASTM A516 / ASME SA 516 Grade 70 Datasheet
What Certification Travels With a Hyderabad Load
Paperwork moves with the plate rather than behind it. Six items cover what an incoming inspection team in Hyderabad will open the file looking for:
- Mill Test Certificate as per EN 10204 3.1, issued against each plate.
- Dual certification carrying ASTM A516 Gr 70 and ASME SA 516 Gr 70 Material on the same MTC.
- Heat number and plate number traceability, hard stamped on the plate itself.
- Chemical analysis, tensile results and the recorded heat treatment condition on the certificate.
- Inspection at our Taloja and Kalamboli warehouses before despatch by the industrialist or an appointed agency.
- HIC testing to NACE TM0284, supplied with a test report giving crack length ratio, crack thickness ratio and crack sensitivity ratio, arranged on request.
ASTM A516 Gr.70 Plate Price in Hyderabad
ASTM A 516 Gr.70 plate for Hyderabad industrialists is listed from approximately ₹65-95 per kg for boiler quality material, ex-yard Taloja or Kalamboli. Road freight into Telangana is quoted as a separate line against the load, because the rate per tonne drops sharply once a vehicle fills. Quoted rates hold for the validity period stated on the offer, since plate prices track mill and scrap movement. Headline per-kg numbers circulating locally are worth reading closely: a low figure usually covers one thickness in one supply condition at one test scope, and excludes freight.
Six Variables That Set the Quoted Rate
- Thickness, width and length: plate above 20 mm on order basis, and lengths outside the standard 5000 mm and 6300 mm, carry a size extra over standard stock sizes.
- Order quantity: full-plate and multi-tonne orders are rated below cut-piece quantities.
- Supply condition: normalised and stress relieved plate costs more than as-rolled, because of the additional heat treatment cycle. Where the order calls Supplementary Requirement S1 for vacuum treatment, that is priced separately as a melting practice requirement.
- Test scope: HIC testing to NACE TM0284 adds both cost and lead time.
- Certification level: EN 10204 Type 3.1 travels with every plate as standard. Where a project specification calls for a Type 3.2 document, raise it at enquiry stage so the scope and cost can be confirmed.
- Cut-to-size requirement: profile cutting and edge preparation are quoted against the drawing.
Reach out to us for current pricing of SA 516 Gr 70 Plate in Hyderabad.
Looking for ASTM A516 Grade 70 Plates?
Who all in Hyderabad Buy ASTM A516 Grade 70 Plate?
Hyderabad grew a heavy engineering base in the decades after 1956 and a bulk drug base on top of it, and both keep carbon steel pressure equipment in continuous production. Four groups utilise most of our Grade 70 tonnage in Telangana: bulk drug and API process equipment fabricators, boiler and power plant auxiliary shops, fertiliser and chemical project fabricators, and the general engineering estates. Each buys the grade for a different purpose, and the sections below set out how.

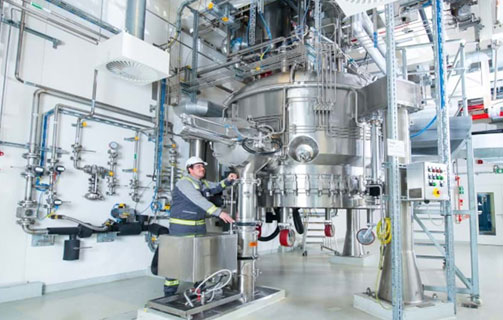

Bulk Drug and API Process Equipment Fabricators
Fabrication shops serving the bulk drug belt at Jeedimetla, IDA Bollaram, Pashamylaram, Kazipally and Gaddapotharam build reactors, receivers, solvent storage vessels and effluent evaporator bodies. Shell courses and dished end blanks draw on the 3 mm to 20 mm band we hold in stock. Because this belt runs on plant upgrades and capacity additions rather than one-off projects, orders arrive in repeat lots against drawings that change very little.
Boiler and Power Plant Auxiliary Fabrication
Boiler drums, headers, deaerator shells and pressure-part supports built around the heavy power equipment belt at Ramachandrapuram run on this grade. Every plate carries its heat number, plate number and matching EN 10204 Type 3.1 certificate, so the QA file is complete when the material lands. For a boiler registered under the Indian Boiler Regulations, IBR documentation sits outside the EN 10204 Type 3.1 scope our stock is supplied against. Raise that requirement with us at the enquiry stage rather than after the order is released.

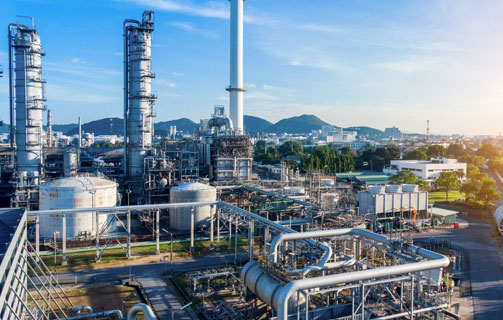

Fertiliser, Chemical and Refinery-Linked Project Fabricators
Project buyers on fertiliser and chemical plant work order in tonnage lots rather than single plates, then call the material off against a fabrication schedule. Ammonia and urea plant equipment, process vessels, and the storage tankage that surrounds them all sit inside the thickness range we stock. Refinery and pipeline-linked equipment orders reaching Hyderabad shops follow the same rhythm. We hold the reserved tonnage at Taloja or Kalamboli and release it truck by truck as the site calls for material. Where sour service appears in the specification, HIC testing to NACE TM0284 can be arranged against the order.

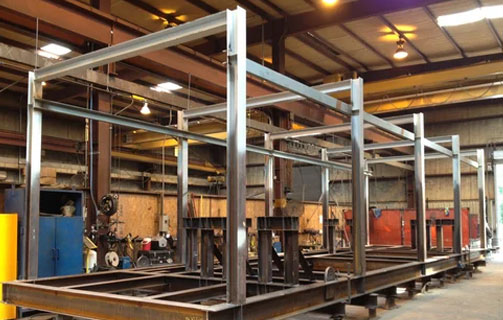

General Engineering and Job-Order Fabrication Shops
The older engineering estates at Balanagar, Sanathnagar, Nacharam, Uppal and IDA Cherlapally hold a large number of small and medium fabrication units. Work here is job order rather than project driven: air receivers, heat exchanger shells, channel covers, tube sheet backing and cut blanks against a customer drawing. Cut-to-size supply matters more than tonnage to this group, since a full plate bought for a two-tonne job leaves offcut that nobody pays for.
Packing, Marking and Road Movement to Hyderabad
Over a run of this length, packing carries more load than it does on a short haul. Plates go out in bundles or wooden cases, hard stamped so traceability survives every handling point between the yard and your fabrication bay. Packing, marking, inspection and delivery terms are set out below.
PackagingPlates go out in bundles, or in wooden cases and crates where thickness and quantity call for it
Marking and traceabilityEvery plate is hard stamped with the heat number and specification, so material traces back to its certificate at any stage of fabrication
Third party inspectionCustomer inspection and third party inspection are welcome, and are arranged before despatch
Shipping termsEx yard Taloja or Kalamboli, or delivered to your gate in Hyderabad
Service areaHyderabad city, the Medchal and Shamshabad belts, Sangareddy, Patancheru and across Telangana, delivered to the fabrication yard
Despatch and transitReady-stock plates in standard sizes load within 2 to 3 working days. Cut sizes add 2 to 3 working days. Road transit on this route is confirmed against the transporter’s schedule when the load is booked
Hyderabad and Telangana Areas We Deliver Into
We deliver into these industrial areas in and around Hyderabad:
- Balanagar, Sanathnagar and Kukatpally
- Azamabad and Chandulal Baradari
- Jeedimetla and Gandimaisamma
- Nacharam, Uppal and Habsiguda
- IDA Cherlapally and Medipally
- Ramachandrapuram and Beeramguda
- Patancheru, Pashamylaram and Isnapur
- IDA Bollaram, Kazipally and Gaddapotharam
- Genome Valley and Shamirpet
- Medchal, Kandlakoya and Dundigal
- Shamshabad, Kothur and the Bengaluru highway belt
- Sangareddy and Zaheerabad
What an Industrialist in Hyderabad Gets From Chiranjiv Steel Centre
Four practical reasons bring Telangana fabricators back to us:
- Established in 2000. Two and a half decades in the steel trade, with the last five years built specifically around pressure vessel plate.
- Approximately 2000 tonnes on the floor. Ready stock from 3 mm to 20 mm removes the wait on a mill rolling schedule.
- Clean documentation. EN 10204 3.1 certificates with full traceability, so the QA file doesn’t stall at your gate.
- Sizes that cut well. Widths of 1250 mm and 1500 mm with lengths of 5000 mm and 6300 mm cut plate wastage on common shell developments.
Send your enquiry with grade, thickness, size and quantity, and the quote goes out the same day.
